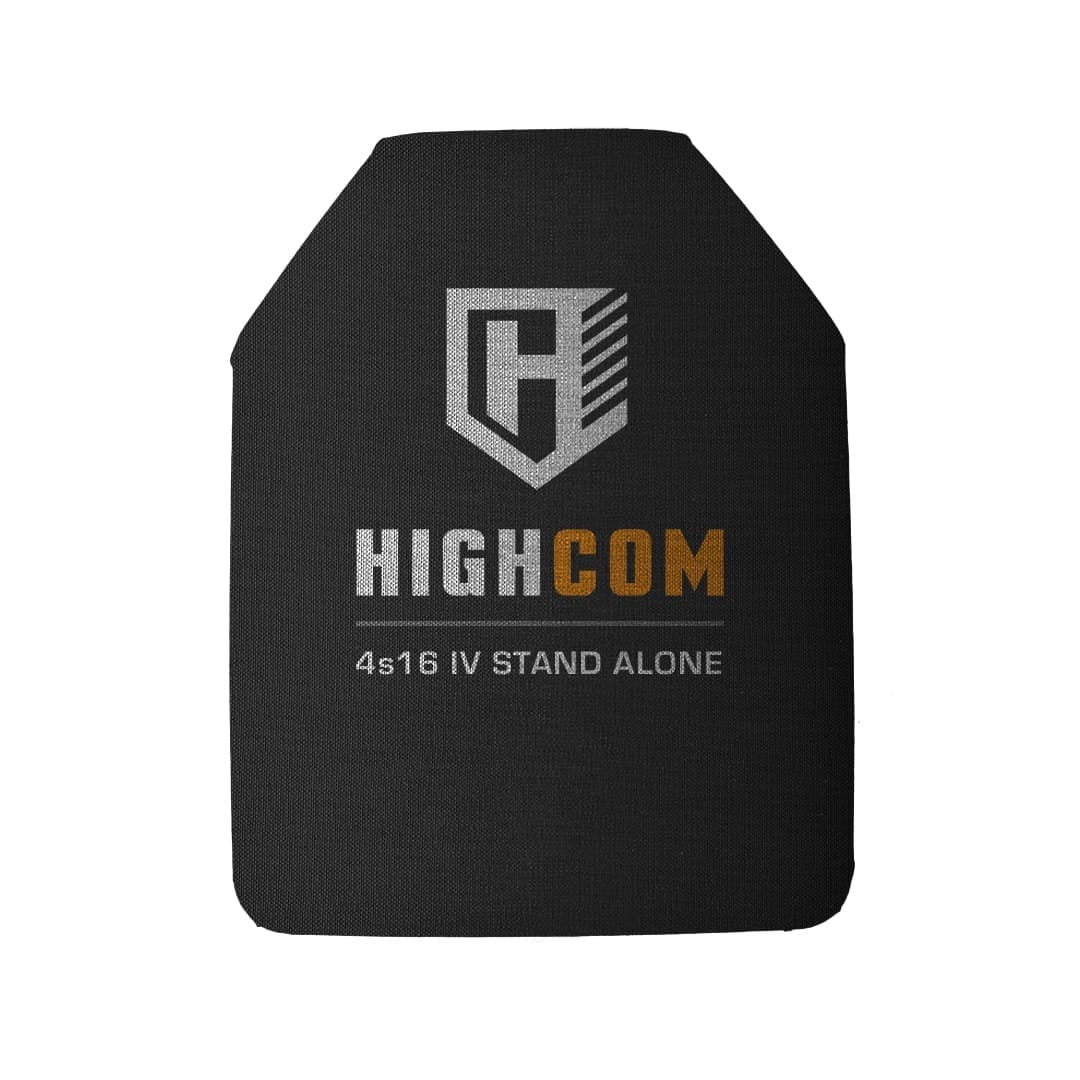

The Guardian 4s16™ Level IV Stand Alone ceramic plate provides rifle armor protection from armor-piercing rounds. Made in the USA, the 4s16 has been independently tested by an NVLAP accredited laboratory according to NIJ Standard 0101.06 level IV ballistic threats.
Click the boxes below to see the sizes and weights for the 4S17M, specifications, and ballistic rounds these plates have been tested against. Boxes may not be visible on mobile devices. Please download the Product Spec Sheet listed below.
Plate Sizes & Weights
Sizes & Weight
| SIZE | CURVATURE | CUT | WEIGHT |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 2.2 lbs / 1.0 kg |
| 5 x 8 | Single Curve | Full | 2.6 lbs / 1.2 kg |
| 6 x 6 | Single Curve | Full | 2.1 lbs / 1.0 kg |
| 6 x 8 | Single Curve | Full | 3.0 lbs / 1.4 kg |
| 8 x 10 | Single Curve | Full | 5.0 lbs / 2.3 kg |
| 8 x 10 | Single Curve | Shooters | 4.8 lbs / 2.2 kg |
| 10 x 12 | Single Curve | Full | 7.4 lbs / 3.3 kg |
| 10 x 12 | Single Curve | Shooters | 6.2 lbs / 2.8 kg |
| 10 x 12 | Single Curve | Swimmers | 6.6 lbs / 3.0 kg |
| 10 x 12 | Muti Curve | Shooters | 6.2 lbs / 2.8 kg |
| 7¼ x 11½ | Muti Curve | SAPI (XS) | 5.2 lbs / 2.0 kg |
| 8¾ x 11¾ | Muti Curve | SAPI (S) | 6.5 lbs / 2.9 kg |
| 9½ x 12½ | Muti Curve | SAPI (M) | 7.5 lbs / 3.4 kg |
| 10 x 13¼ | Muti Curve | SAPI (L) | 8.6 lbs / 3.9 kg |
| 11 x 14 | Muti Curve | SAPI (XL) | 9.9 lbs / 4.5 kg |
Specifications
Specifications
- Protection: Level IV Stand Alone Armor Piercing
- NIJ Standard 0101.06: This product has been independently tested by an NIJ approved laboratory according to the NIJ standard of protection
- RST: Rifle Special Threats Validated
- Material: Ceramic + UHMWPE
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Thinness: 0.75”
- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Ballistics Tested
Ballistic Rounds Tested
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | .30 caliber armor piercing (AP) bullets (M2 AP) | 166 | 2880 | 878 | (+/- 30) |
